Energy-saving cottage 7,4 х 7,4 m - "Gotiza"
-
Basic kit:
(What is included in the price)
- wall set;
- set of rafters;
- set of floor beams;
- interventional insulation;
- antiseptic (treatment of the entire material);
- oak dowels (nails);
- fastening materials (self-tapping screws, shrink bolts, anchors, fixing plates);
- waterproofing;
- facing walls and openings;
- preparation of strobes for electrical wiring;
- fire-bioprotection (treatment of wood with a means of the І group of fire-retardant efficiency);
- installation on the territory of Ukraine;
- installation outside Ukraine + 20% to the cost of the productу.
-
2 767 €
Roof:
- Batten 100*25 mm (pine)
- Counter batten 50*25 mm (pine)
- Metal tile MONTERREY 0.45 mm
- Ridge straight
- Frontal (decorative) bar
- Junction bar
- Wind bar
- Valley
- Dropper (cornice plank)
- Universal sealant
- Self-tapping screws OS 4.8x35
- Spray paint
- Hydrobarrier
- Mounting
992 €Windows:
- Window VEKA 58, white 10
- Vertical mullions: 1 x 102103
- Glazing: double-glazed window, single-chamber 24 mm, (coefficient of thermal conductivity of glass 0.36)*
- Hardware type: Activpilot Tilt&Turn, white
- Special profile: Activ microventilation; Activ 2-function mechanic
- Mosquito grid: MS 3
- Drain on the window sill: VM 110 mm, white
- Window sill: PV PVC 150, Caps: 600mm, white
- Mounting
Doors:
- Canvas
- Door frame
- Platband
- Cornice
- Painting
- Glass
- Accessories
- Fittings insert
- Mounting
2 026 €Painting:
- Edge grinding
- Three-layer cover with an effective wood protection means based on low molecular weight alkyd resin by spraying.
- Number of floors: 1
- Area: 54,2
- Width: 7,4
- Length: 7,4
-
Cylindrical log
Rounded timber is the most optimal and common material for the construction of wooden houses, log cabins and baths, gazebos, various garden furniture, wooden structures of all kinds. Wooden houses from cylindrical logs are distinguished by their beauty. Inside such a house everyone could feel a special cozy atmosphere.
Profiled log
The most modern and high-tech building material in wooden construction today is profiled timber. For the manufacture of a house from profiled beams, ordinary wooden beams are given a certain profile on special woodworking equipment.
Double beam with insulation
Wooden housing construction is constantly developing, building technologies are being improved, projects are becoming more efficient. One of the most promising and energy efficient technologies of today is the “double log with insulation”.
- blog comments powered by Disqus
Сonstruction parameters
Construction dimensions
| WC (m²) | 3,6 |
| kitchen-studio (m²) | 16,4 |
| bedroom (m²) | 7,5 |
| bedroom (m²) | 7,5 |
| terrace (m²) | 15,0 |

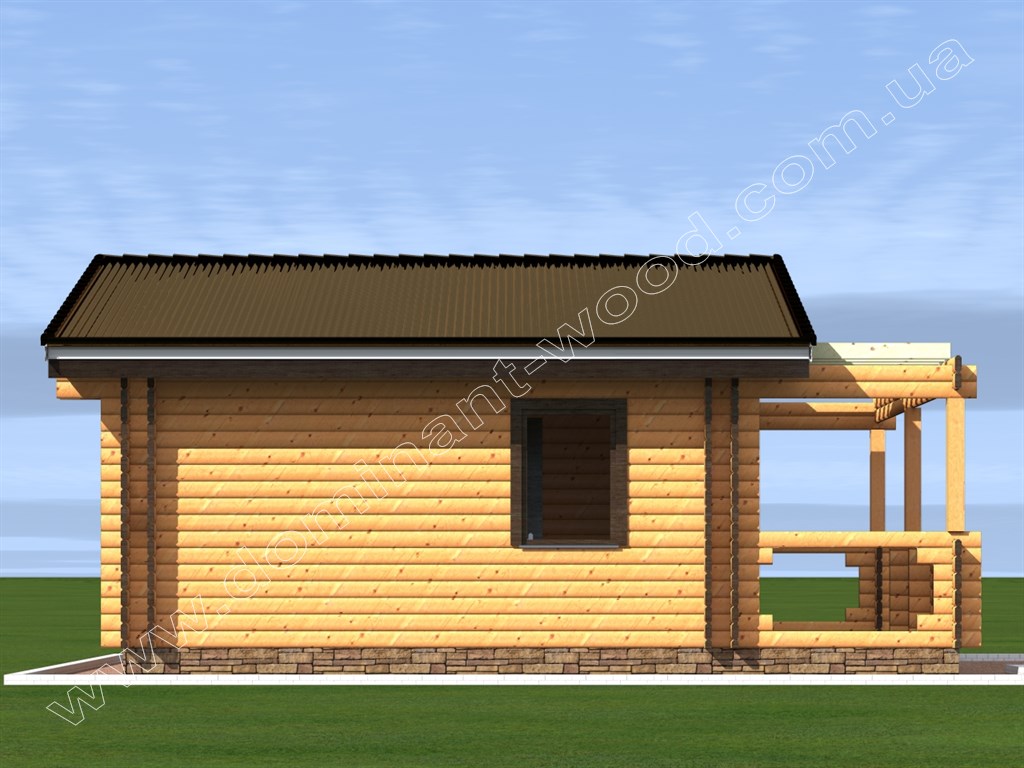

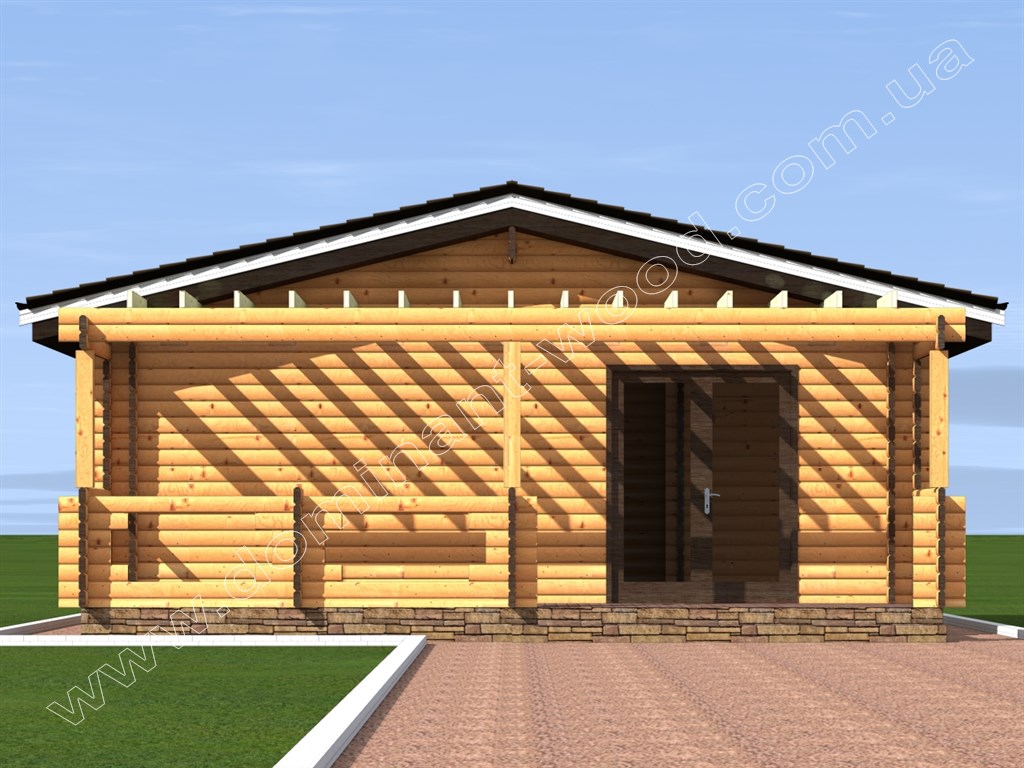

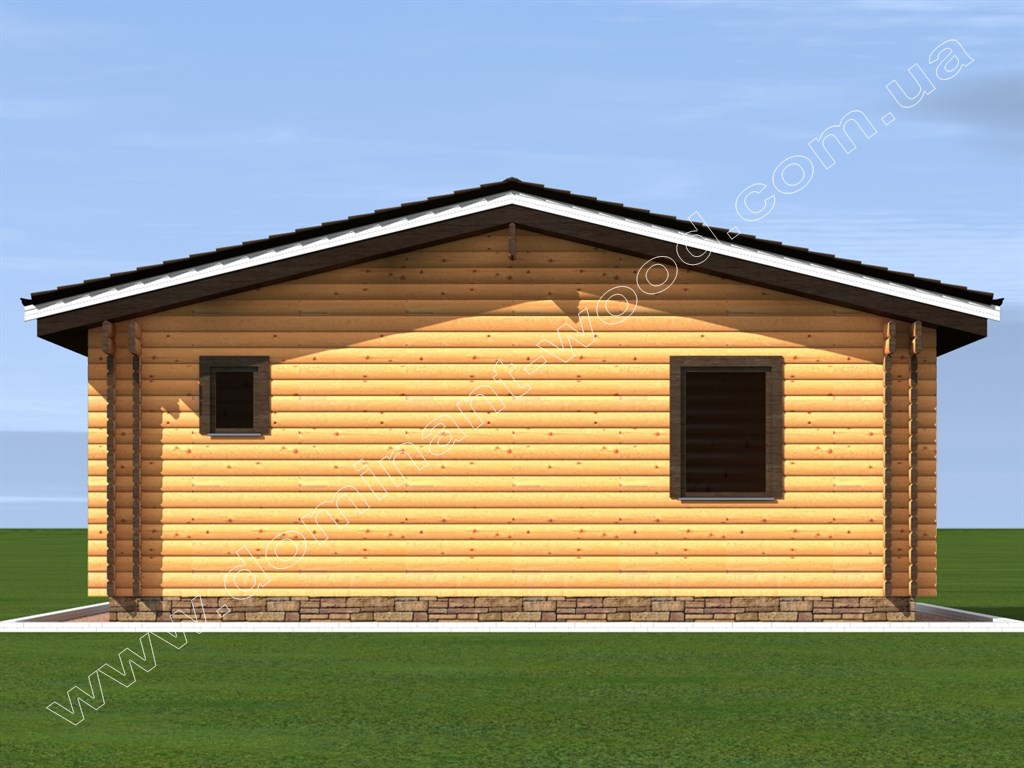

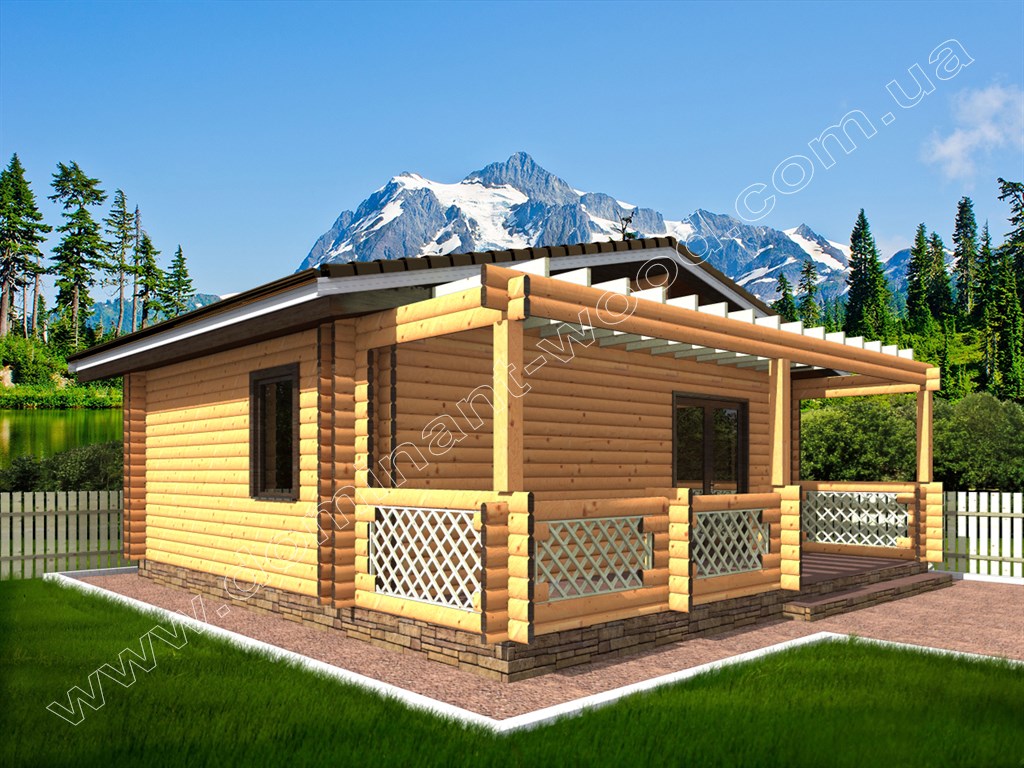

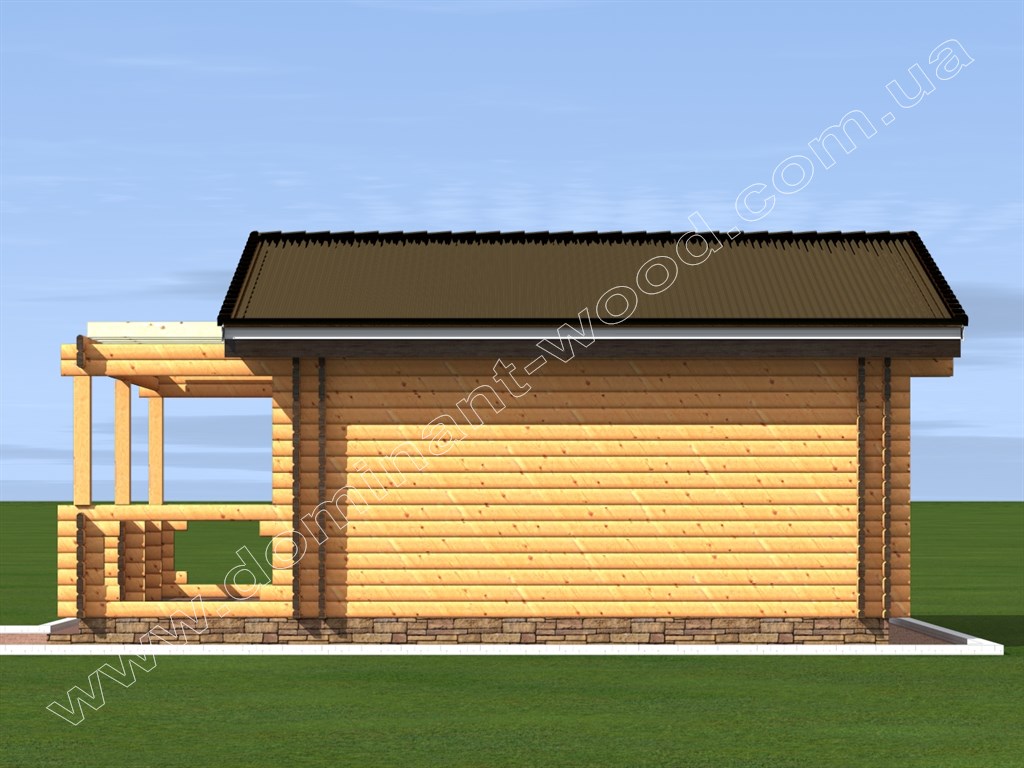

Energy-saving cottage 7,4 х 7,4 m
A small, pretty house 7,4 х 7,4 m, decorated with a light summer terrace, looks like as it was created for warm, sunny days and relaxing in a picturesque area, surrounded by natural beauty and crystal clear air far away from city smog. A compact building can serve as both a summer log cabin and a guesthouse in the backyard. The project "Gotiza" is distinguished not only by the beauty of the external design, but also by the well-designed planning of the rooms.

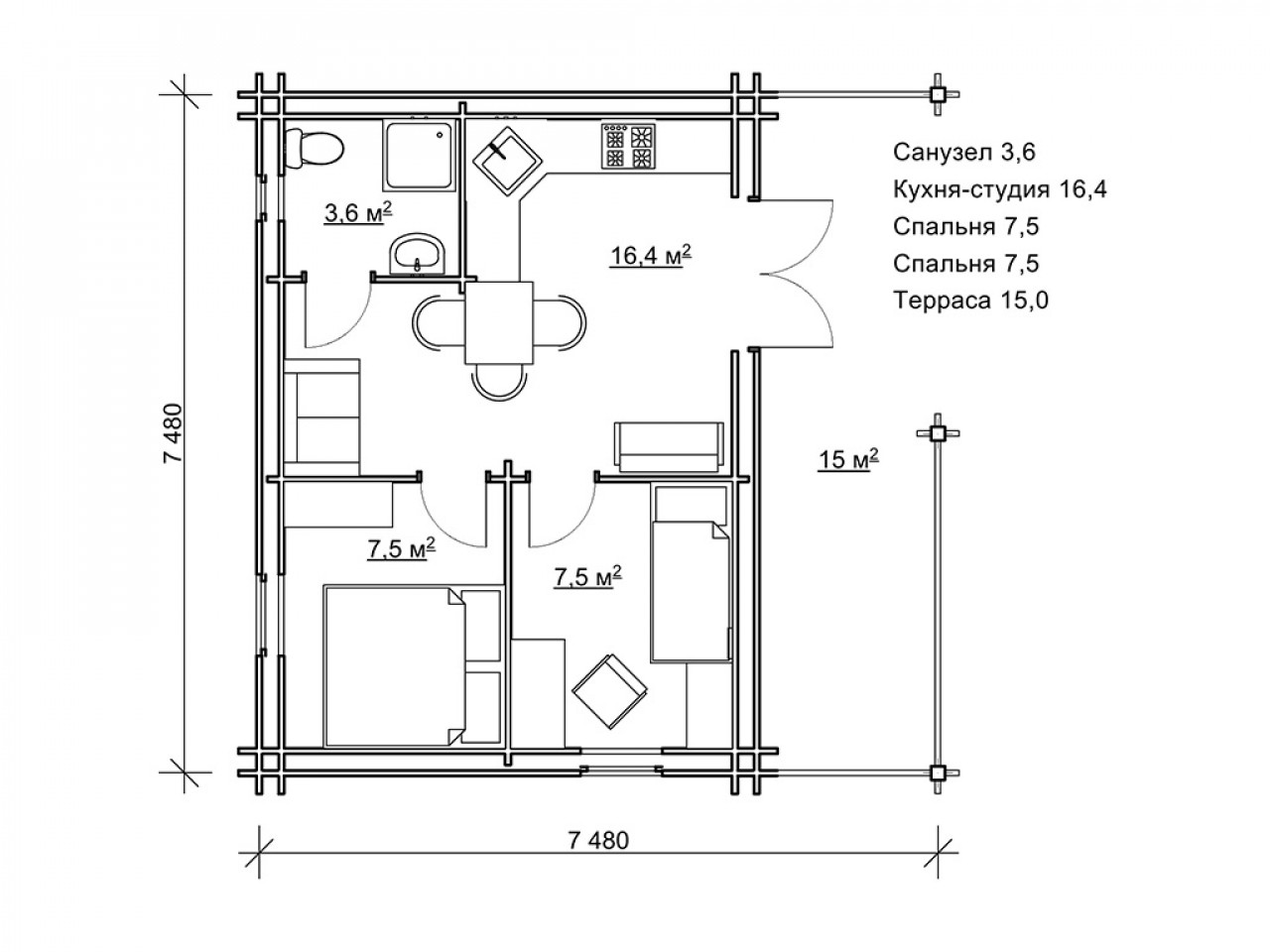

Country cottage plan, area 54,2 m2
Wooden cottage includes two bedrooms, a kitchen studio, a bathroom and a summer terrace. Despite the small area of the house, the convenient distribution of the internal space will make all household members and guests of the cottage feel comfortable. A spacious terrace at the entrance with an area of 15 m2 allows you to place a dining room on it in the summer, and thus expand the functional area of the kitchen.
Construction of a country house with insulation
The most important advantage of the wooden cottage "Gotiza" is the material of construction. The walls of the cottage are made in a double beam, between which insulation is laid, which gives triple protection of the interior rooms from cold and wind. Interior walls in the house are offered from dry profiled timber 60*150 mm, due to which savings in the construction budget are achieved. Thus, a country house according to the finished project "Gotiza" from the company "Dominant" will not only give a lot of comfort and bright moments to its household, but also save on heating in the cold season. Such an energy-saving cottage will, without a doubt, be a profitable investment in creating exceptional comfort for its owners.
