Construction of a wooden church 9х9 m – "Church 5"
-
Basic kit:
(What is included in the price)
- wall set;
- set of rafters;
- set of floor beams;
- interventional insulation;
- antiseptic (treatment of the entire material);
- oak dowels (nails);
- fastening materials (self-tapping screws, shrink bolts, anchors, fixing plates);
- waterproofing;
- facing walls and openings;
- preparation of strobes for electrical wiring;
- fire-bioprotection (treatment of wood with a means of the І group of fire-retardant efficiency);
- installation on the territory of Ukraine;
- installation outside Ukraine + 20% to the cost of the productу.
-
4 536 €
Roof:
- Batten 100*25 mm (pine)
- Counter batten 50*25 mm (pine)
- Metal tile MONTERREY 0.45 mm
- Ridge straight
- Frontal (decorative) bar
- Junction bar
- Wind bar
- Valley
- Dropper (cornice plank)
- Universal sealant
- Self-tapping screws OS 4.8x35
- Spray paint
- Hydrobarrier
- Mounting
2 315 €Windows:
- Window VEKA 58, white 10
- Vertical mullions: 1 x 102103
- Glazing: double-glazed window, single-chamber 24 mm, (coefficient of thermal conductivity of glass 0.36)*
- Hardware type: Activpilot Tilt&Turn, white
- Special profile: Activ microventilation; Activ 2-function mechanic
- Mosquito grid: MS 3
- Drain on the window sill: VM 110 mm, white
- Window sill: PV PVC 150, Caps: 600mm, white
- Mounting
2 783 €Doors:
- Canvas
- Door frame
- Platband
- Cornice
- Painting
- Glass
- Accessories
- Fittings insert
- Mounting
4 493 €Painting:
- Edge grinding
- Three-layer cover with an effective wood protection means based on low molecular weight alkyd resin by spraying.
- Number of floors: 1
- Area: 52,2
- Width: 9
- Length: 9
-
Cylindrical log
Rounded timber is the most optimal and common material for the construction of wooden houses, log cabins and baths, gazebos, various garden furniture, wooden structures of all kinds. Wooden houses from cylindrical logs are distinguished by their beauty. Inside such a house everyone could feel a special cozy atmosphere.
Profiled log
The most modern and high-tech building material in wooden construction today is profiled timber. For the manufacture of a house from profiled beams, ordinary wooden beams are given a certain profile on special woodworking equipment.
Double beam with insulation
Wooden housing construction is constantly developing, building technologies are being improved, projects are becoming more efficient. One of the most promising and energy efficient technologies of today is the “double log with insulation”.
- blog comments powered by Disqus
Сonstruction parameters
Construction dimensions

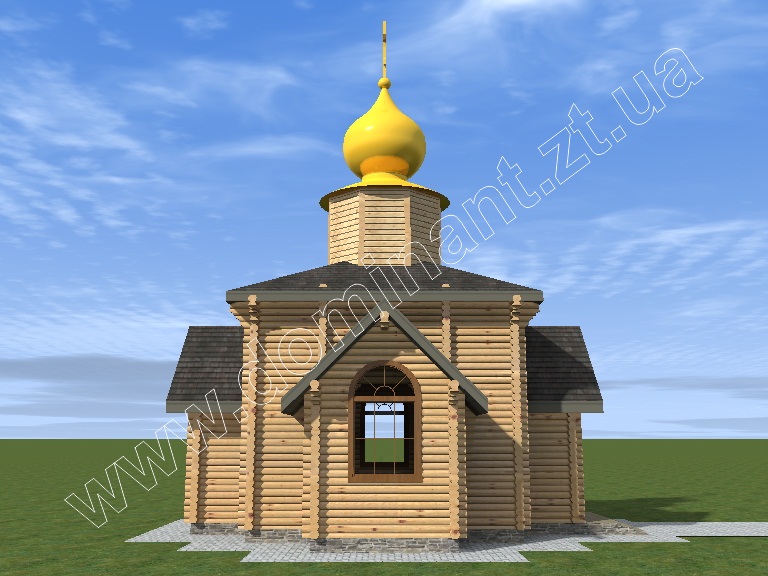

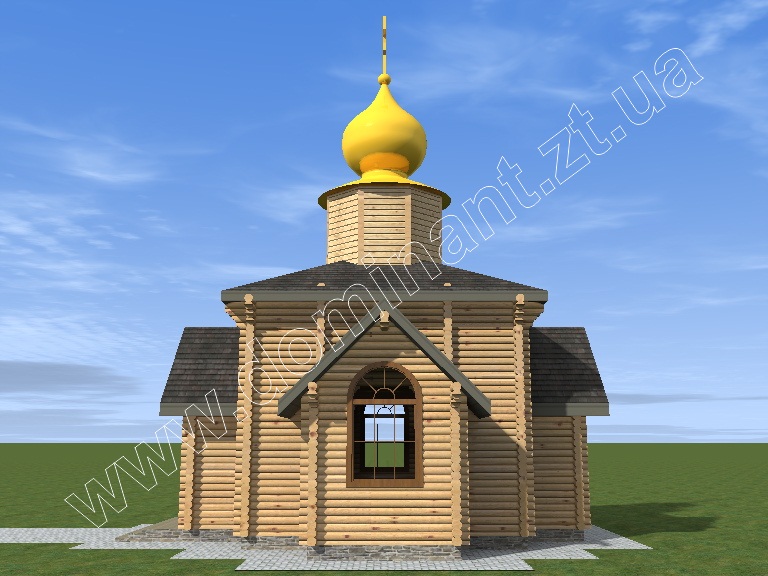

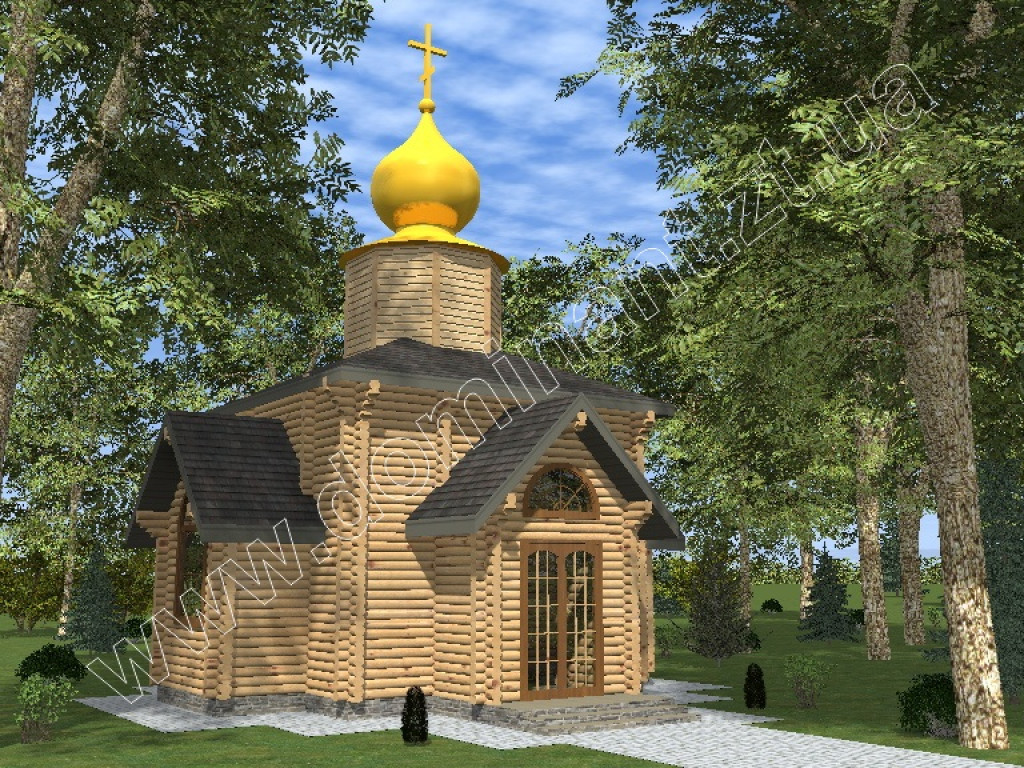

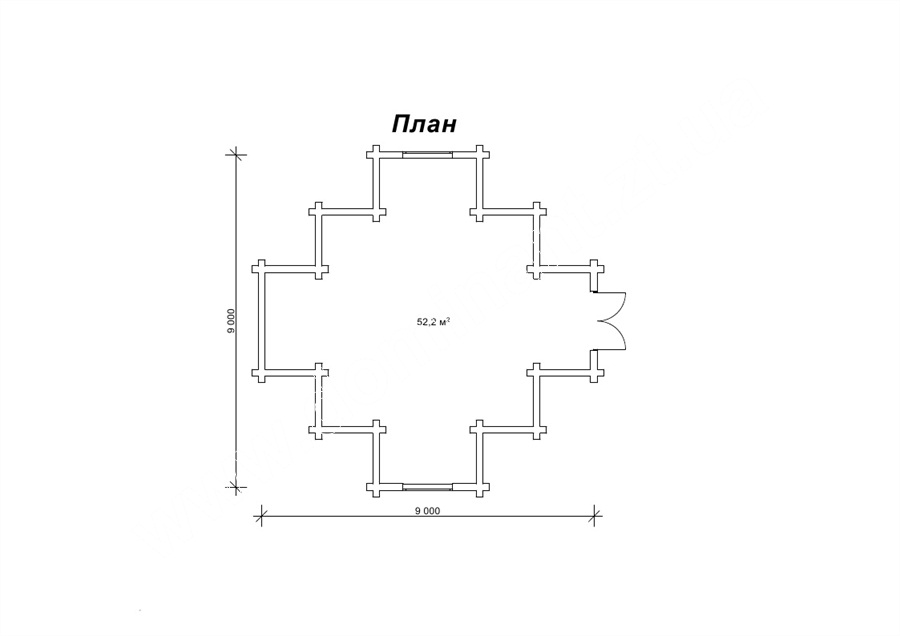

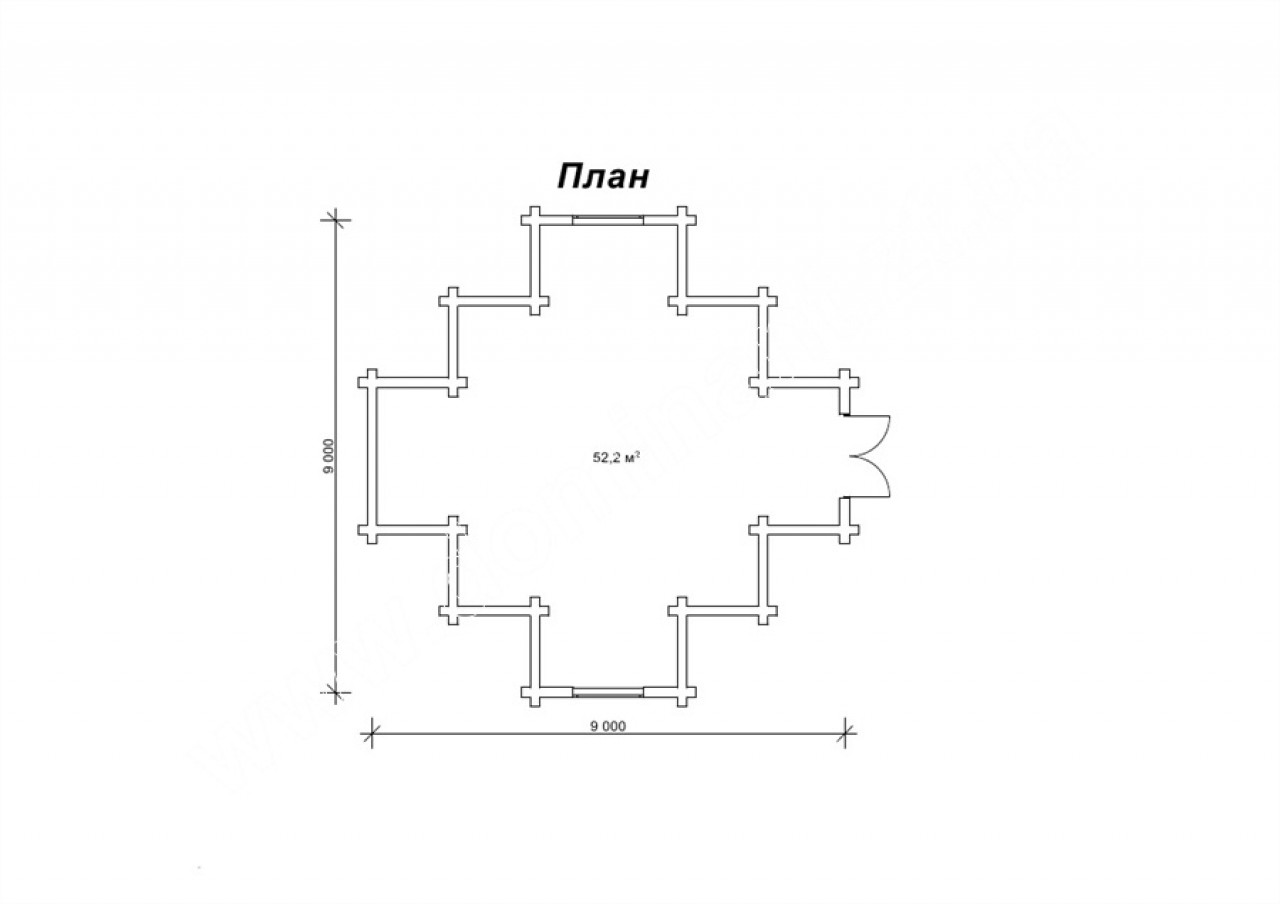

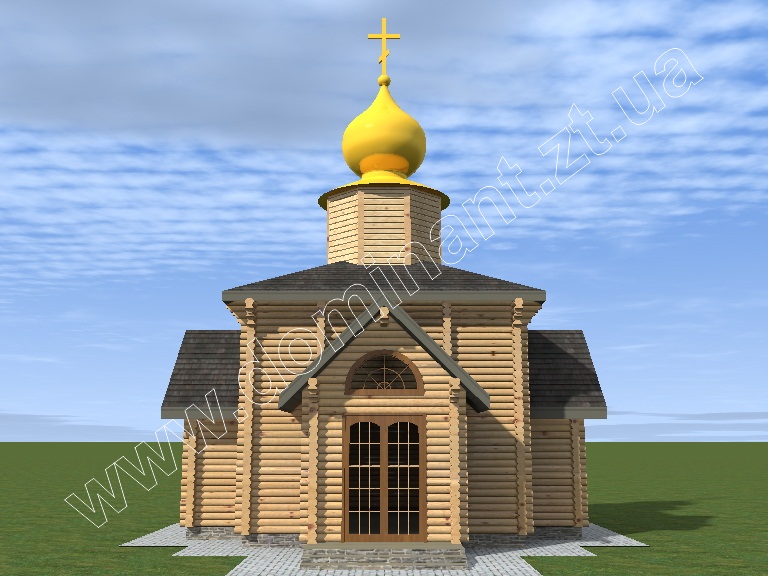

Project of a wooden church 9 by 9 m
Having built hundreds of wooden structures, using the professional experience accumulated over the years, our construction company has completed the construction of many wooden temples, churches and chapels. The project of the “Church 5” presents a small, bright church that embodies the exquisite and at the same time simple beauty of the temple, reflecting the entire originality of the canons of Christianity. The construction of such a wooden temple is only comparable to active prayer.
Construction of the wooden church with area 52.2 m²
When designing this project for Church 5 (Holy Trinity Church), we hoped to make it so beautiful to call both believers and non-believers to itself. This small 9x9 m church can be installed on the territory of a hospital, university, railway station, urban microdistrict, or a small village where there are not so many parishioners and people need a place to be alone with God. The building plan has a cruciform shape and one dome topped with a cross. Church 5 was designed in compliance with all the requirements for this kind of sacred structures. The construction of wooden churches is always carried out according to the traditions formed over the centuries, and the use of the latest modern technologies of wooden construction guarantees the high quality of construction. As the history of wooden construction, which dates back several millennia, shows, wooden temples are durable and, with a competent approach to construction, serve hundreds or even thousands of years. Read more interesting facts about the durability of wooden structures in our articles.
